Solar Fence Chargers & Battery Fence Chargers

Your choice comes down to two factors: where your fence is located and how much weed pressure you have.

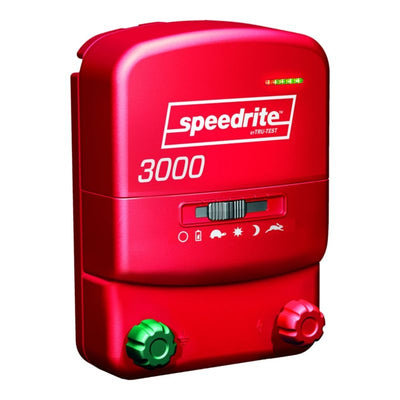

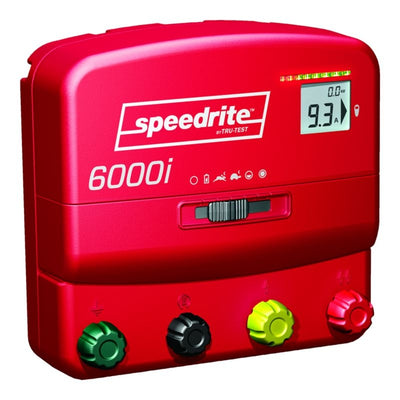

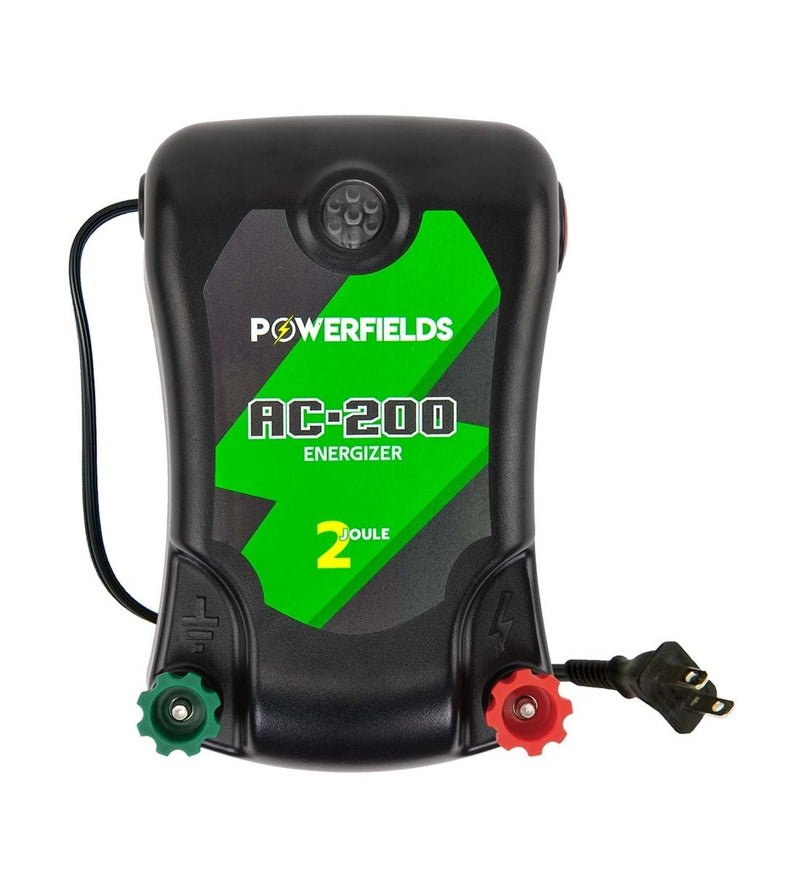

• AC (Plug-In) Chargers: If you have access to a 110V or 220V outlet, this is always your best option. AC units deliver the most reliable, continuous power (up to 15+ joules) and have the muscle to burn through wet weeds shorting out the line.
• Battery-Powered (DC) Chargers: Ideal for remote pastures or rotational grazing setups (typically 10 to 50 acres). They use a 12-volt deep-cycle battery to deliver a solid 1 to 5 joules. The downside is the labor, you will be carrying heavy batteries back to the barn to recharge every 2 to 6 weeks.

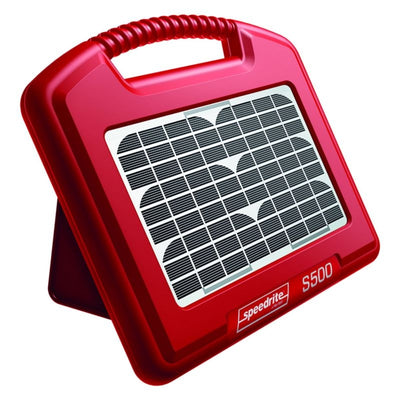

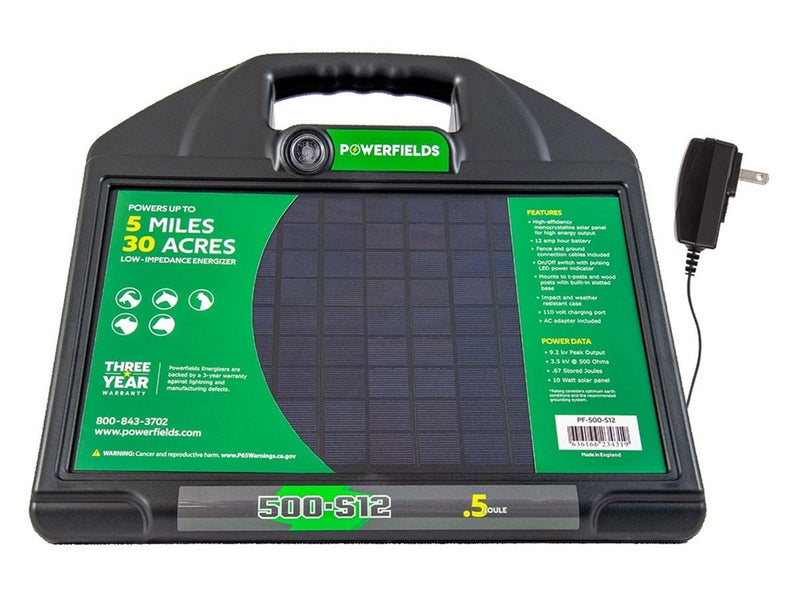

• Solar-Powered Chargers: Best for temporary strip grazing or small, off-grid paddocks (under 10 acres) where maintenance needs to be low. They are highly convenient but offer lower power (typically under 2 joules) and are expensive upfront. Additionally, their output drops significantly during a string of overcast days.

Eighty percent of all electric fence failures are caused by a poor grounding system, not a broken charger. An electric fence operates as an open circuit. To get shocked, the animal must touch the wire, allowing the electricity to flow through its body, into the earth, and all the way back to your ground rods. If your ground rods are shallow, rusted, or too close together, that path is blocked and the shock will be weak or nonexistent. To build a grounding system that actually works:

1. Drive three galvanized metal ground rods (6 to 8 feet long) into the earth. Never use copper rods, mixing copper and steel wire causes galvanic corrosion, which ruins your electrical connection.
2. Space the rods 10 feet apart in a straight line or triangle to maximize the soil area they touch.
3. Place them in damp soil (like the drip-line of a barn) and leave only 2 inches exposed.
4. Connect them to your charger's ground terminal using a continuous run of heavy-duty, 12.5-gauge insulated hookout wire rated for at least 20,000V.

The psychological barrier relies entirely on voltage. If your voltage drops below these thresholds, your animals will quickly learn they can push right through the wire:

• Horses & Cattle: Minimum of 7,000 to 9,000 Volts. They have dry hooves and thick coats that require high voltage to penetrate.
• Sheep, Goats, & Predators: Minimum of 4,500 to 5,000 Volts. Thick wool acts as an incredible electrical insulator. You need high voltage and incredibly fast pulses to get their attention.

It comes down to pulse speed and how well the charger handles weed contact:

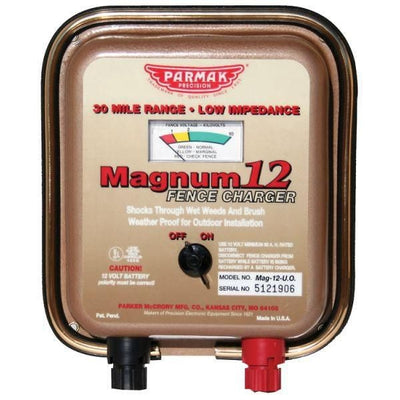

• Low-Impedance Chargers: These deliver an ultra-fast, high-amperage shock (usually lasting less than 0.003 seconds). Because the pulse is so fast, the electricity "jumps" right past wet weeds touching the line instead of leaking into them.
  • Best for: Overgrown pastures, and any setup using plastic poly-wire, poly-tape, or poly-rope (which have high natural resistance and require high-amperage to push voltage through).
• Solid-State Chargers: These deliver a longer, lower-amperage pulse (around 0.1 seconds). They are highly efficient but easily "shorted out."
  • Best for: Well-maintained, clean steel wire fences with zero weed contact. If a wet branch falls on a solid-state line, your fence voltage will drop to zero.

If you live in an area with dry or frozen soil, you may need to run a two-wire system (alternating "hot" and "ground" wires along the fence line). When an animal touches both wires simultaneously, they complete the circuit directly through the wires, completely bypassing the dry earth.

Use this quick diagnostic cheat sheet to locate the issue:
